Installation · Version 2
Version 2 Install Wiring (MT2V)
Version 2 devices have an ID starting with MT2V and one screw antenna.
Installers use this link to test ALL functions after install. This link also keeps you in our database for future installs. (GPS ID is found under the gps)
Installer PortalInstall notes
- Device and antennas should be hidden, but ensure signal is good -- you'll see signal when you log into the portal.
- Let the customer know which fuse they can pull to cut power to the device (to restart it).
- Every function has an "In Wire" and an "Out Wire." Example, for a ground pulse for horn: ground one horn wire, and connect the other horn wire to the car.
- Door and Hood pin can be positive or ground. Ensure the door and hood pin push a voltage or ground even if the car is off.
- Killswitch supports a maximum of 8 amps. If more than 8 amps is needed, or the car's wire is thicker than MooveTrax's brown wires, use an external relay (diagram below).
- Unlock should also disarm (double pulse is supported).
- Ensure you can lock by keyfob and unlock by MooveTrax -- use a bypass like Dbal if needed.
- Ensure a sleeping BCM does not affect unlock.
- All functions are already relay-isolated from each other and the brain.
Ensure the yellow wire does not lose power during cranking.

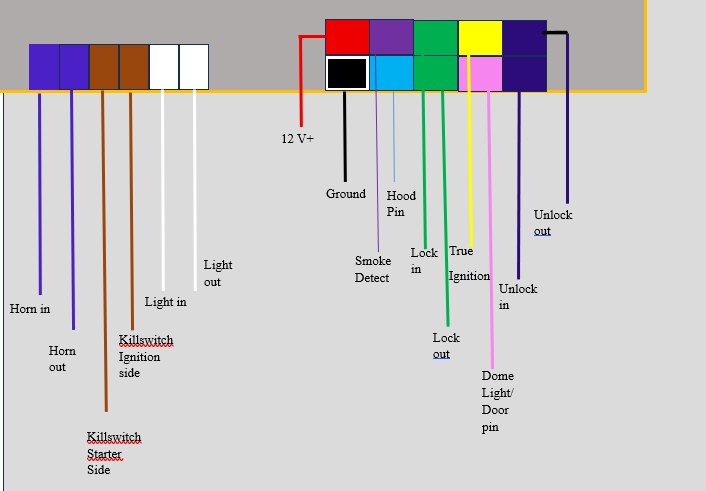

Full wire pinout

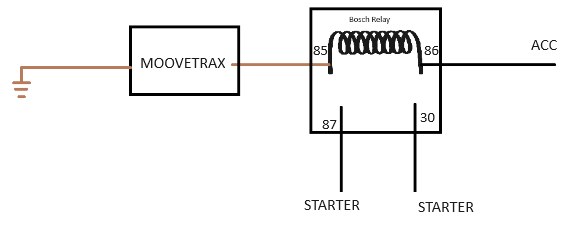

If your killswitch needs more than 8 amps
Smoke Detector
The smoke detector we supply is a 5 volt device -- we also supply its power supply.
- We will NOT use the DO (Digital Output) port.
- Analog Output (AO) goes to the GPS purple wire.
- VCC is 5 volt +.
- GND is ground (from the 5 volt supply).
